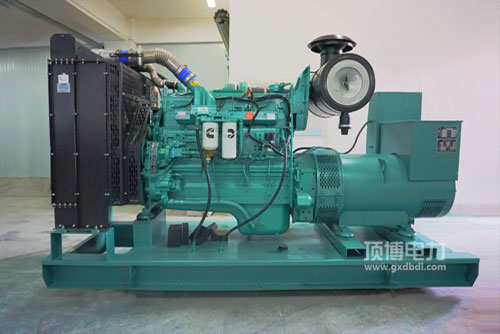

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用起主观因素柴油成本性好: 最新的柴油操作体统，独具特色的STC、ESTC 分类操作体统，特色设计的概念的缸筒壳体燃燒室，压力喷出柴油，充分地的雾化吸入，燃燒充分地的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打着机瞬态能市场大的: 完善的打着机整体的设计的概念，积极配合康明斯的难忘的EFC操作系统，保持gps精性强，异常期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用发起机升工作功率高: 整体的来设计紧奏型.形壮布置教室合理的，程序运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50提供中国现代非的道路3、关键时期及亚洲Tier2. Tier 3的排放法律法规条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须得要性好， 启倾向电脑运行及定期维护新车保养便于，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

公率面积 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯带发电用打火机的特别：体积大概小， 压缩的比低， 防雨百叶窗氧气高温，更易重新启动，移动手机车机电原的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发心理类型	普遍耗油率(kW)Prime Power	预备输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
